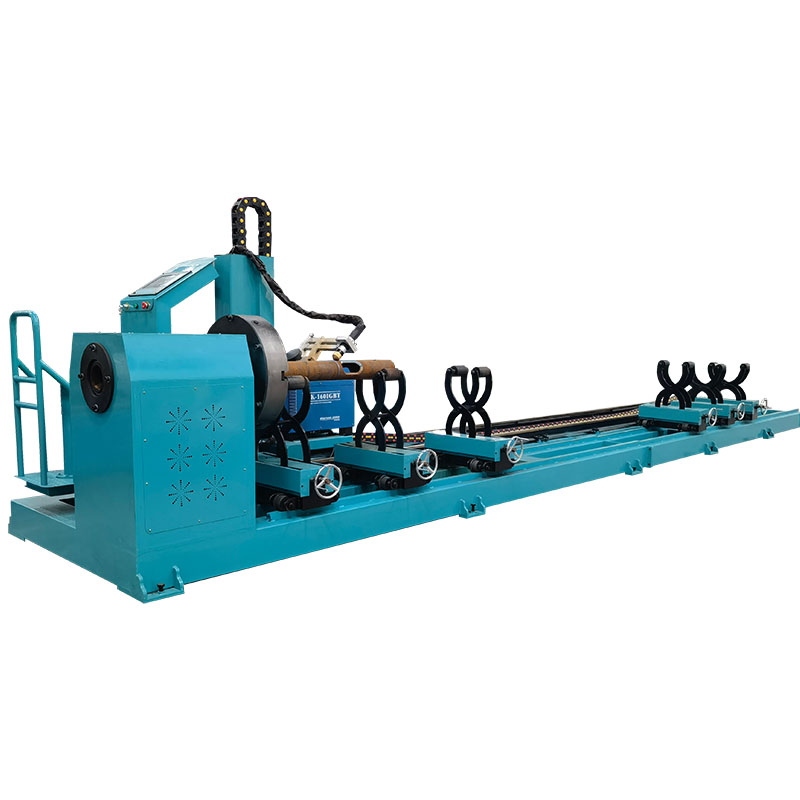

CNC Intersecting line plasma cutting machine

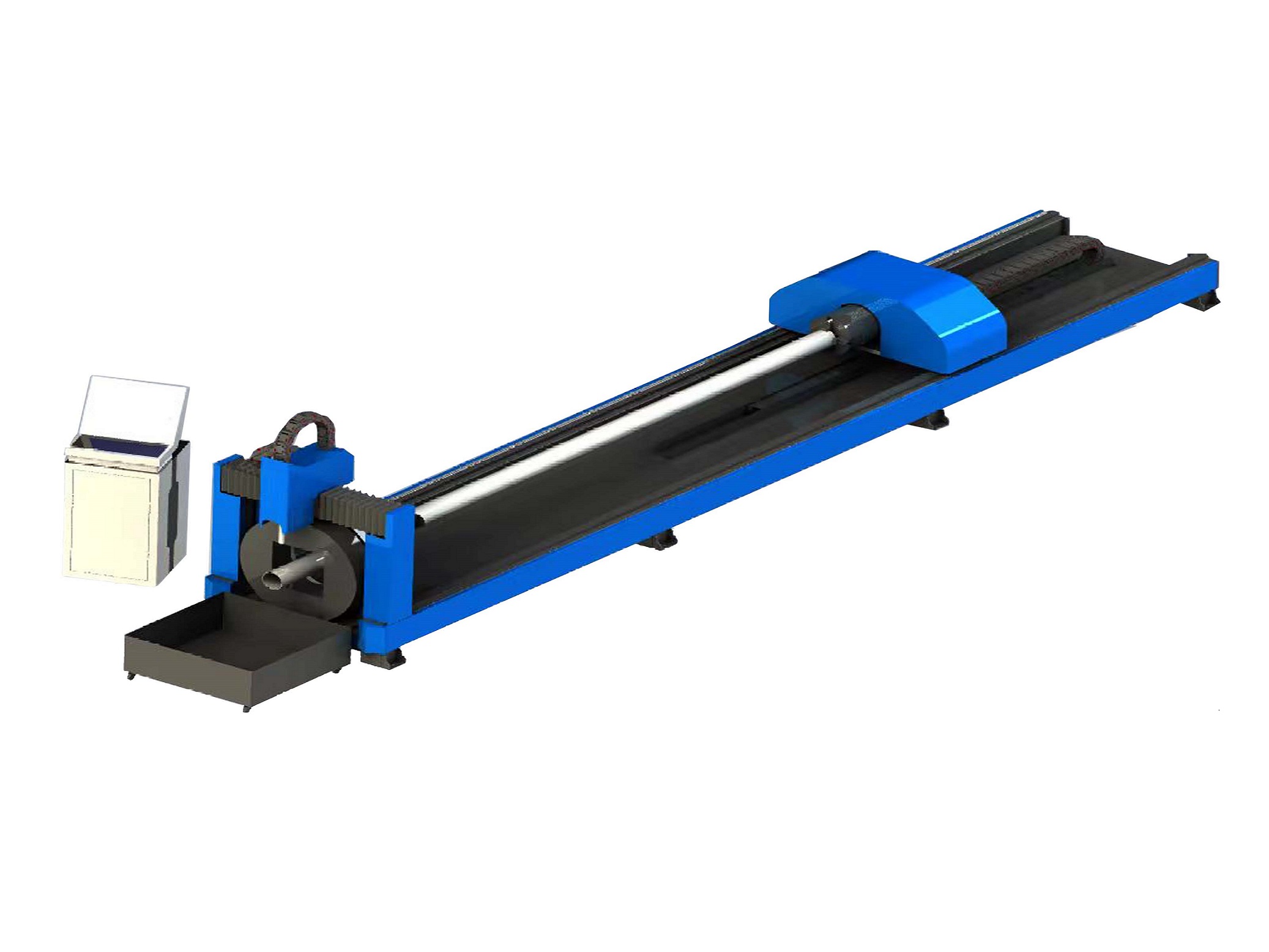

Square tube CNC plasma cutting machine has before and after double chuck, two sections of the overall chassis structure,suitable for different site environments /convenient transportation. The cutting torch adopts the swing aem of aviation aluminum,which is light in weight and small in inertia. A variety of processes can be done in one machine.It supports opening,grooving,saddle hole,bevel cutting ,truncating,and cutting any mouth shape on the pipe.It supports AWS small-angle bevel process and API welding process standards. Stable and durable improve the utilization rate of raw materials to 99% Twisted nesting method, improve the utilization rate of raw materials,automatic filtering,reduce the number of welding.

Online Consulting

Product Details

CNC INTERSECTING LINE PLASMA CUTTING MACHINE

Machine Parameter

Machine Model	HXP-6000
Cutting Length	6000mm	9000mm	12000mm
Pipe Diameter	0-600mm
Cutting Speed	0-20000mm/min
Moving Speed	0-20000mm/min
Axial swing angle	a=±60°
Radial Swing Angle	p=±55°
Cutting length accuracy	±1.5mm
Skew Angle	15°-170°
Angular Error	±1
BevelAngle	Plasma cutting W±Flame cutting W±60°
